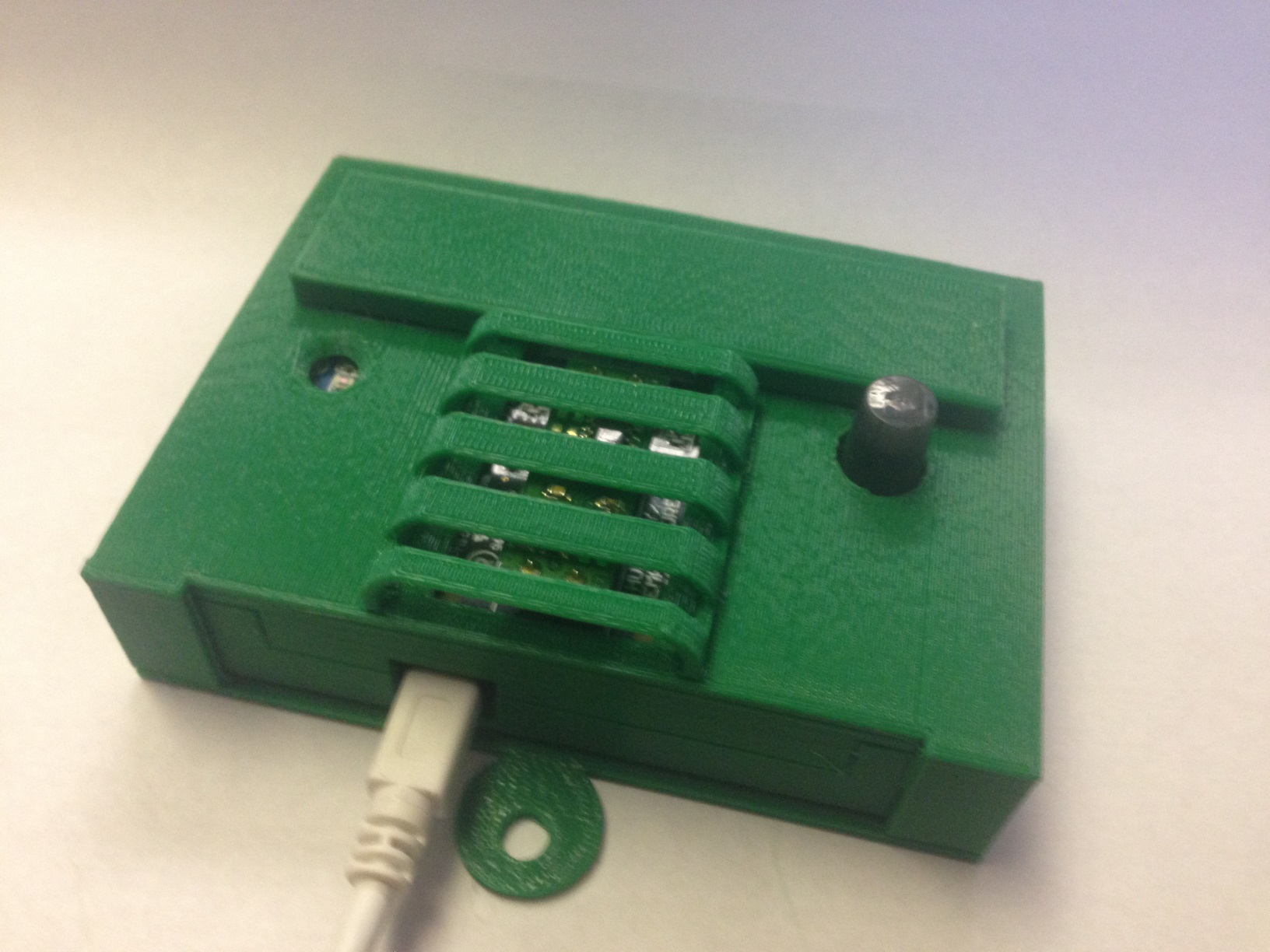

USB Sensor Array

This unit is also available for sale at http://knowesys.com.

Assembly

The unit has five main hardware components and a printable case. Links for electronics and 3D printed parts are provided below.

Hardware:

Case:

Case [SCAD/STL]
Back[SCAD/STL]
Lid [SCAD/STL]
Peg (x2) [SCAD/STL]
Holster [SCAD/STL]

Step 1: Use JST cables to connect port 0 of the Phidget to the temperature output and port 1 to the humidity output.

Step 2: Connect the light sensor to port 2.

Step 3: Connect the motion sensor to port 3.

Step 4: Fit the Phidget board on to the four pins of the case so that it lies flat.

Step 5: Slide the three sensors in to their corresponding slots in the case.

Step 6: Put each of the two pins in the holes of the round lid.

Step 7: Fit the lid over the wires and press it firmly in to position, making sure it is completely flush against the case (You may have to squish the wires a bit!)

Step 8: Cover the Phidget with the back piece. This locks the lid in place to complete assembly.
